PU400×125 PU500×170 PU600×210 Metal Sheet Piling PZ22 PZ27 Steel Sheet Pile
-
Highlight
PU600×210 Metal Sheet Piling
,PU400×125 Metal Sheet Piling
,PZ22 PZ27 Steel Sheet Pile
-
Model NO.Steel Sheet Piles
-
ApplicationStructural Steel Bar
-
Price TermFOB EXW CIF
-
ShapeU
-
Transport PackageStandard Sea Freight Packing Or Customized
-
Special UseCutting Tools, Measuring Tools
-
Place of OriginChina
-
Brand NameHTFD
-
CertificationCE ISO CNAS CQC
-
Model NumberPU400×125 PU500×170 PU600×210 PU 8 PU 12 PU 32 FSP-Ⅲ FSP-Ⅳ PZ22 PZ27
-
Minimum Order Quantity1Ton
-
PriceUSD 1800-2300 per ton
-
Packaging DetailsStandard Export Package
-
Delivery Time7-15 working days
-
Payment TermsT/T,L/C
-
Supply Ability50000Tons/Month
PU400×125 PU500×170 PU600×210 Metal Sheet Piling PZ22 PZ27 Steel Sheet Pile
PU400×125 PU500×170 PU600×210 PU 8 PU 12 PU 32 FSP-Ⅲ FSP-Ⅳ PZ22 PZ27 Steel Sheet Pile
Sheet piles are vertical walls formed by locking connections to
simultaneously maintainearth pressure, water pressure, or both at the same time.
Zhuosheng Steel has supplied more than 10,000 tons of various types of steel sheet piles to overseas customers,
of which about 8,000 tons are used for permanent buildings (such as shipyards, wharves, retaining walls, ship locks,
slipways, pump locks, etc.) Temporary works for engineering projects (such as temporary construction cofferdams, tunnels
and foundation supports, etc.).
- Very easy to lift, transport and install.
- Wide entry depth, thick flange and good static performance.
- Symmetrical structure, very easy to reuse.
- Can be pre-assembled into "pile groups" in the factory, greatly improving the efficiency of pile driving.
- Very easy to install ties and accessories, even underwater.
- The thickest part is in the outermost layer of the wall (hot rolled) for good corrosion resistance

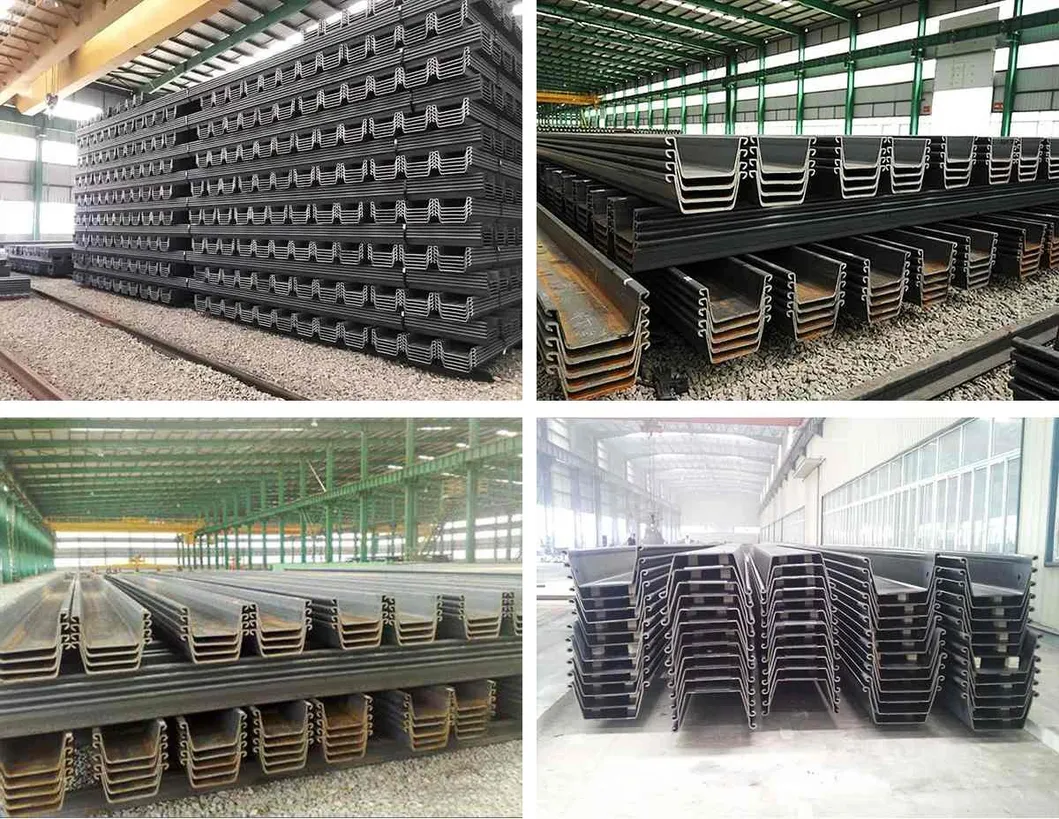

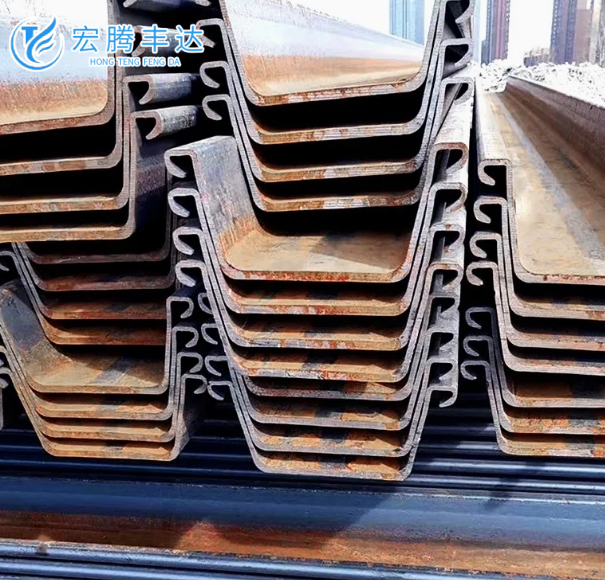

U type steel sheet piles
| Size | Per piece | ||||
| Specification | Width (mm) |
High (mm) |
Thick (mm) |
Section area (cm2) |
Weight (kg/m) |
| 400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 |
| 400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 |
| 400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 |
| 400 x 150 | 400 | 150 | 13.1 | 74.40 | 58.4 |
| 400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 |
| 600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 |
| 600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 |
| 600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 |
| 750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 |
| 750 | 205.5 | 11.5 | 109.9 | 86.3 | |
| 750 | 206 | 12.0 | 113.4 | 89.0 | |

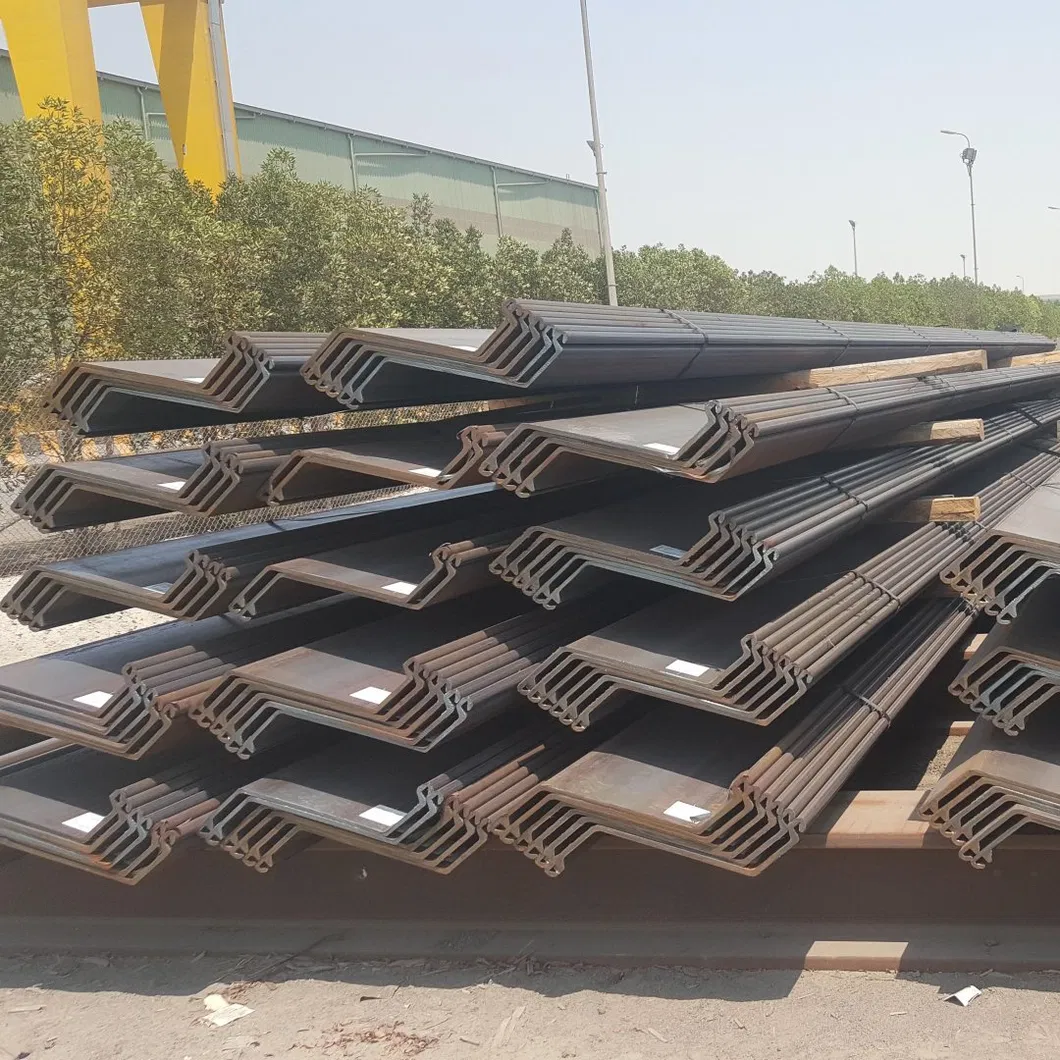

Z type steel sheet piles:
| Specification | Width (mm) |
High (mm) |
Thick t (mm) |
Thick s (mm) |
Weight (kg/m) |
| SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
| SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
| SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
| SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
| SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
| SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
| SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
| SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
| SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
| SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
| SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
| SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
| SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
| SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |
Our products are sold all over the world, you can rest assured.
