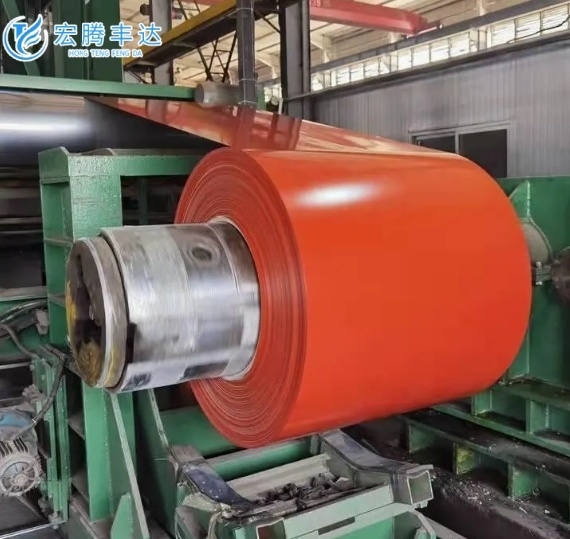

DX51D+Z PPGL PPGI Ral Color Coated Steel Sheet Coil for Industrial Roofing
-
Highlight
DX51D+Z PPGL coated steel sheet
,PPGI steel coil for roofing
,Ral color coated steel coil
-
TechniqueCold Rolled
-
ApplicationContainer Plate
-
Thickness0.12mm-4.0mm Or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
-
Coil ID508mm/610mm
-
TermsFOB EXW CIF
-
Place of OriginCHINA
-
Brand NameHTFD
-
CertificationCE ISO CNAS CQC
-
Model NumberDX51D+Z
-
Minimum Order Quantity1Ton
-
PriceUSD 1800-2300 per ton
-
Packaging DetailsStandard Export Package
-
Delivery Time7-15 working days
-
Payment TermsT/T,L/C
-
Supply Ability50000Tons/Month
DX51D+Z PPGL PPGI Ral Color Coated Steel Sheet Coil for Industrial Roofing
| Name | PPGI steel coil | |
| Type of substrate |
Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminum |
|
| Thickness | 0.125-2mm | |
| Tolerance | Thickness: ± 0.01mm | |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) | |
| Top Paint | 10-25 micron(Normal:10-12mic) | |
| Back paint | 5-12 micron(Normal:5-7mic) | |
| Coating | Zn coating | AZ coating |
| 30-400gsm | 30-400gsm | |
| Coil weight | 3-5 tons or as your requirement. | |
| Coil ID | 508/610 mm | |
| Grade | Galvanized | Galvalume |
| SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH....... |
DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD,SGLC4 40,SGLHC........ |
|
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance |
||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance |
||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
| Type of coating process |
Front: Doulbe coated & double drying | |
| Back: Double coated & double drying, single coated & double drying | ||
| Double coated & double drying is used for corrugated sheet | ||
| Double coated & single drying is for sandwich panel | ||
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet. |
|
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings |
|
*Topcoat (finishing) which provides color, pleasing appearance and appearance and a barrier film to enhance long-term durability.
*Primer coat to prevent undercutting of paint and enhance corrosion resistance.
*Pretreatment layer applied for good adhesion and to enhance corrosion resistance.
*Base steel sheet.
*Primer coat to prevent undercutting of paint and enhance corrosion resistance.
*Pretreatment layer applied for good adhesion and to enhance corrosion resistance.
*Base steel sheet.
We can provide various of steel products, including ERW round pipe, gi pipe, square & rectangular tube, ssaw, lsaw pipe, seamless pipe,angle & H &I & U beam , rebar, wire rod; steel coil & plate,balck & galvanized wires, scaffolding, gi/ppgi coil & sheet etc.
